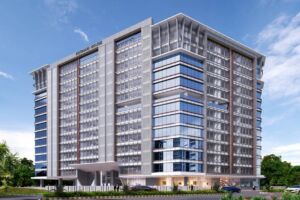

Projects

Scope of Work– Complete facilitation for IGBC Green New Buildings v3 Certification

Location – Mumbai

Site area – 1.2 acres

No. of buildings – one

Built up Area – 3 lakh sq.ft

Floors – 2B+G+13 floors

Enverte Consultancy is the Green Building Consultant appointed by Ardra Green Design Studio for the project.

The project is going for IGBC Green New Buildings Precertification and Final Certification.

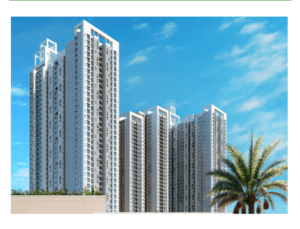

Scope of Work– Green features report for marketing based on IGBC, ECBC, and Environmental Analysis Studies done by Architects and Consultants

Location – Mumbai

Site area – 21 acres

No. of buildings – Four towers

Floors - G+5+23 floors

Enverte Consultancy partnered with Smarter Dharma for this project to create the Green Marketing & Sustainability Content for the project, helping the developers marketing team for showcasing the green features of the project.

Enverte Consultancy prepared the green data warehousing report. Our role is to analyze the documents prepared by the project consultants and filter out the marketable Green Features for the understanding of the prospective buyers.

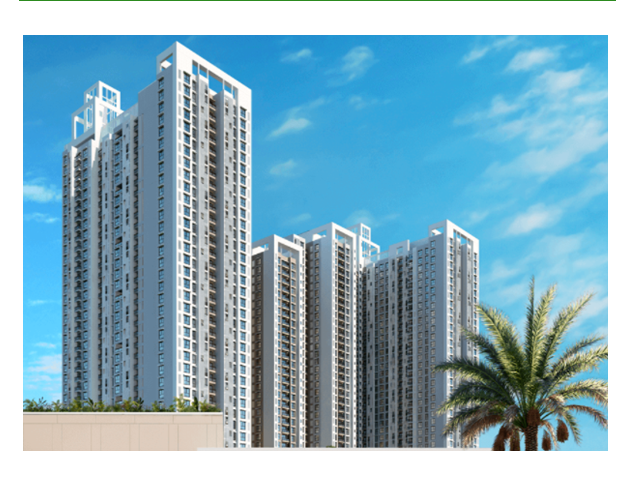

Scope of Work– Green features report for marketing based on LEED, ECBC and Environmental Analysis Studies done by Architects and Consultants

Location – Mumbai

Site area - 79843.36 sq.m

No. of buildings – Three

Built-up area - 337683.6 sq.m

Buildings in the Project –

1.Building 1 – Residential Tower – 3B+G+75 floors

2.Building 2 – Residential Tower – 3B+G+75 floors

3.Building 3 – Retail & Clubhouse – 3B+G+7 floors

• Enverte Consultancy partnered with Smarter Dharma for the Green Marketing & Sustainability Content creation for the project, helping the developers marketing team for showcasing the green features of the project.

• Enverte Consultancy prepared the Green Data Warehousing Report for the green features of the project. Our role is to analyse the documents prepared by the project consultants and filter out the marketable Green Features for the understanding of the prospective buyers.

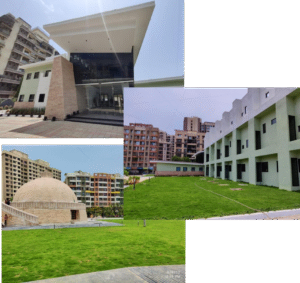

Scope of Work– Feasibility Study for IGBC Green Service Buildings Rating

Location – Mira Road

Site Area - 6612 sq.m.

No. of buildings – Two i.e. Meditation Center and Stupa

Built-up Area– 1150 Sq.m (Meditation Center– 1,000 sq.m, Stupa – 150 sq.m)

No. of floors – Meditation Center – G+1, Stupa - Ground

No. of parking spaces provided – 46 cars, 17 two wheelers

RG area – 2830 sq.m with 55 nos. of trees

The Project – Meditation Centre is located at Mira Road (Maharashtra) that is being developed by Mira Bhayandar Municipal Corporation.

Enverte Consultancy partnered with AS Designs, Mumbai to conduct the IGBC Green Service Buildings Feasibility Study for this project and the project was evaluated under IGBC Green Service Buildings rating system. As part of the study, ASD had detailed discussions with the project team consisting Architects , 5 Elements Design Cell,  with an objective of educating the project team about  IGBC/ green building requirements and understanding the building design to assess the achievable IGBC rating for this project.

The current project design combined with some extra efforts, shall enable the Community Center project to achieve Silver Level of IGBC Green Service Buildings rating with 40 achievable points.

Scope of Work-Energy modelling on request for IGBC Green Service Building Rating

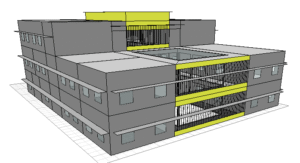

Project Name – Electric Substation 1

Location – Mumbai

Building Type – Electric Substation

Built up Area (with basement) – 14,340.1 Sqft

No. of floors– Basement + Ground + Mezzanine + 2 floors

Green Rating – IGBC Green Service Buildings

Scope of work – Energy modelling for IGBC Green SB Rating

Analysis Method – Whole Building Energy simulation approach

Code – ECBC 2017

Software used – eQuest 3-65

Basecase energy consumption - 228789.5 kWh

Proposed case energy consumption - 174936 kWh

Total savings (%) – 23.54%

Points achieved – 5 points

The project is 14,340 sq.ft of electric substation building. The overall WWR of the building is about 19.57%. The building faces north and is also the direction of the longer façade. The building envelope accounts for maximum amount of heat into the building. This project secured 23.54% saving over ECBC 2017 baseline due to its efficient lighting and onsite Solar PV. The project is under construction and will be applying for IGBC Service Buildings Certification.

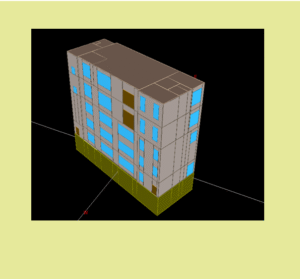

Scope of Work-Energy modelling on eQuest for IGBC Green Service Building Rating

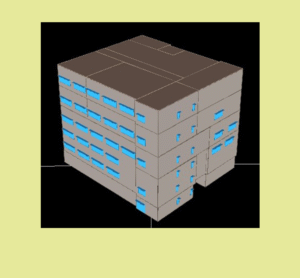

Project Name – Electric Substation 2

Location – Mumbai

Building Type – Electric Substation

Built up Area (with basement) – 35757 Sqft

No. of floors – Ground + Four floors

Green Rating – IGBC Green Service Buildings

Scope of work – Energy modelling for IGBC Green SB Rating

Analysis Method – Whole Building Energy simulation approach

Code – ECBC 2017

Software used – eQuest 3-65

Basecase energy consumption - 242301 kWh

Proposed case energy consumption - 175405 kWh

Total savings (%) – 27.61%

Points achieved – 7 points

The project is 35757 sq. ft of electric substation building. The overall WWR of the building is about 9.73%. The building faces north and is also the direction of the longer façade. The building envelope accounts for the maximum amount of heat into the building. This project secured 27.61% saving over ECBC 2017 baseline due to its efficient lighting and onsite Solar PV. The project is under construction and will be applying for IGBC Service Buildings Certification.

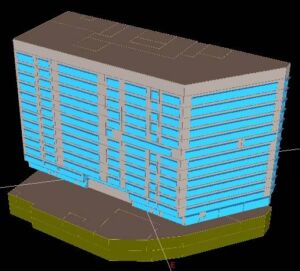

Scope of Work– Energy modelling on eQuest for IGBC NB Rating

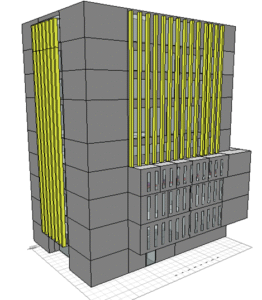

Project Name – Commercial Complex

Location – Mumbai

Building Type – Commercial

Built up Area (with basement) – 494839 ft²

No. of floors– 1 Basement + Ground + 18 floors + Service

Green Rating – IGBC Green New Buildings – Tenant Occupied

Scope of work – Energy modelling for IGBC NB Rating

Analysis Method – Whole Building Energy simulation approach

Code – ASHRAE 90.1 2010

Software used – eQuest 3-65

Basecase energy consumption - 3117827 kWh

Proposed case energy consumption - 2665371 kWh

Total savings (%) – 16.9%

Points achieved – 7 points under EE c2

The project is a 494839 sq. ft core and shell building containing office spaces. The overall WWR of the building is about 50.61%. The building faces north and is also the direction of the longer façade. The extensive glazing accounts for the maximum amount of heat in the building.

This project secured 16.90% savings over ASHRAE 90.1-2010 baseline due to its efficient HVAC, lighting, envelope design, and onsite Solar PV. The project has achieved IGBC NB Pre-certification.

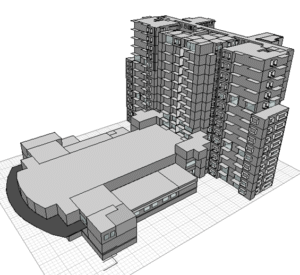

Scope of Work– Energy Modelling on eQuest for ECBC Compliance

Project Name – Retail and Service Apartment, Gurugram

Location – Sector 28, Gurgaon

Building Type – Hotel

Built up Area – 1,72,112 sq.ft approx.

No. of floors – 2 Basements + Ground + 16 floors

Scope of work – Energy modelling for IGBC NB Rating

Analysis Method – Whole Building Energy simulation approach

Software used – eQuest 3-65

Code – Energy Conservation Building Code 2017

Basecase energy consumption - 5912278 kWh

Proposed case energy consumption - 5870594 kWh

EPI Ratio – 0.98

The building has 3B + G + 16 floors which contains offices, retail, service apartments. The overall WWR of the building is about 23%. The building facing northwest and is also the direction of the longer façade. The orientation and windows account for maximum amount of heat into the building. The building has achieved energy efficiency with efficient HVAC, lighting system and onsite Solar PV.

This project secured EPI ratio of 0.98 and meets the ECBC requirement of EPI ratio of less than or equal to 1.

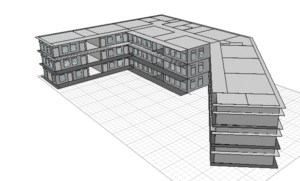

Scope of Work–

Complete facilitation for IGBC Green Schools

Certification

Location – Bangalore

No. of buildings – one

Built up Area – 1,20,000 sq.ft

Floors – G+4 floors

Project Owner – Jhanavi Heights

Architect – Jagadish M

Green Consultant – Enverte Consultancy

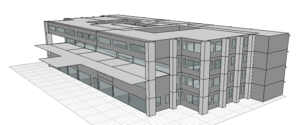

Scope of Work–

Complete facilitation for IGBC Green Schools

Certification

Location – Bangalore

Site area – 1. acres

No. of buildings – two

Built up Area – 30,000 sq.ft

Floors – G+2 floors

Project Owner – Vidyan Foundation

Architect – The Schools Design Studio

Green Consultant – Enverte Consultancy

Scope of Work–

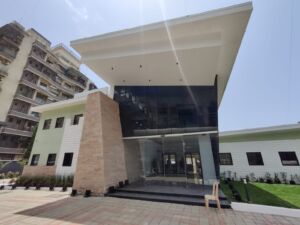

Green Building Consultant for IGBC Green Interiors Rating

Location – Thrissur at Kerala

Project Type – Bank branch

Site Area – 3000 sq.ft.

No. of floors– one

Scope of Work–

Complete facilitation for IGBC Green New Buildings v3 Certification

Location – Mumbai  Site area – 1.2 acres  No. of buildings – one

Built up Area – 3 lakh sq.ft

Floors – 2B+G+13 floors

Enverte Consultancy is the Green Building  Consultant appointed by Ardra Green Design Studio  for the project.

The project is going for IGBC Green New Buildings  Precertification and Final Certification.

Project Owner –  UY Industries

Architect – Design Core

Green Consultant – Ardra Green Design Studio & Enverte Consultancy

Scope of Work–

Green Building Consultant for IGBC Green Service Buildings

Rating

Location – Mira Road  Site Area - 6612 sq.m.  No. of buildings – One

Built-up Area– 1000 Sq.m

No. of floors – Meditation Center – G+1,

No. of parking spaces provided – 46 cars, 17 two wheelers

RG area – 2830 sq.m with 55 nos. of trees

The Project – Meditation Centre is located at Mira Road  (Maharashtra) that is being developed by Mira Bhayandar  Municipal Corporation.

Enverte Consultancy partnered with AS Designs, Mumbai to  conduct the IGBC Green Service Buildings Feasibility Study for this  project and the project was evaluated under IGBC Green Service  Buildings rating system. As part of the study, ASD had detailed  discussions with the project team consisting Architects , 5  Elements Design Cell, with an objective of educating the project  team about IGBC/ green building requirements and  understanding the building design to assess the achievable IGBC  rating for this project.

The current project design combined with some extra efforts, shall  enable the Community Center project to achieve Certified Level of  IGBC Green Service Buildings rating with 33 achievable points.

Project Owner –Mira Bhayandar Municipal Corporation

Architect – 5 Elements Design Cell

Green Consultant – AS Designs & Enverte Consultancy

Scope of Work–

Green Building Consultant for IGBC Green Homes Rating

Location – Mangalore  Site Area - 6612 sq.m.  No. of buildings – One

Built-up Area– 3 lakhs Sq.m

No. of floors – G + 38

Enverte Consultancy was the Green Building Consultant for the  project. Platinum Level of IGBC Green Homes rating with 81  achievable points.

Project Owner –  UY Industries

Architect  – Dharmaraj Associates

Green Consultant –  Enverte Consultancy

Scope of Work–

Energy modelling on eQuest for IGBC Green Service  Building Rating

Project Name – Electric Substation 2  Location – Mumbai

Building Type – Electric Substation

Built up Area (with basement) – 35757 Sqft

No. of floors – Ground + Four floors

Green Rating – IGBC Green Service Buildings

Scope of work – Energy modelling for IGBC Green SB Rating  Analysis  Method  –  Whole  Building  Energy  simulation  approach

Code – ECBC 2017

Software used – eQuest 3-65

Basecase energy consumption - 242301 kWh

Proposed case energy consumption - 175405 kWh

Total savings (%) – 27.61%  Points achieved – 7 points

The project is 35757 sq.ft of electric substation building. The  overall WWR of the building is about 9.73%. The building faces  north and is also the direction of the longer façade. The  building envelope accounts for maximum amount of heat  into the building. This project secured 27.61% saving over  ECBC 2017 baseline due to its efficient lighting and onsite  Solar PV. The project is under construction and will be  applying for IGBC Service Buildings Certification.
